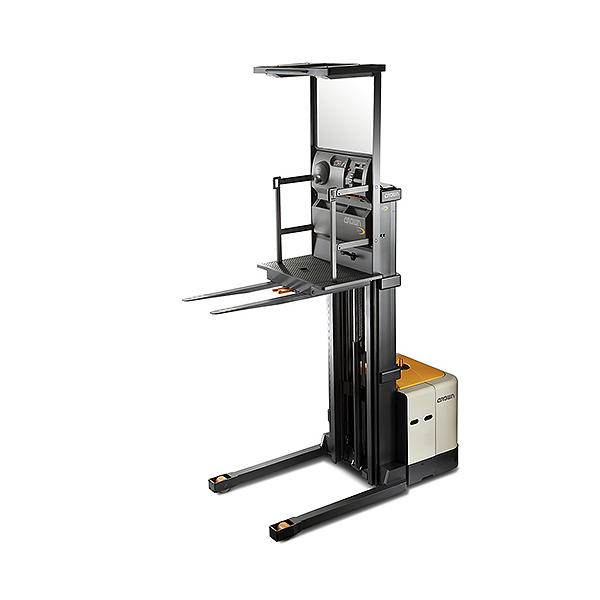

Crown SP 3570 F
The SP Series 4-wheel straddle stockpicker is suitable for narrow-aisle use. It is the highest capacity stockpicker in the line, handling heavy palletized loads at heights up to 366 inches.
Brand
Crown
Model Number
SP-3570-F
Load Capacity
Up to 1360 kg
Maximum Lift Height
Up to 9295 mm
Maximum Travel Speed (Empty)
2.4 - 11.2 km/h
Maximum Platform Height
9295 mm
Overall Width
1260 - 1970 mm
Head Length
1895 - 2085 mm
Maximum Lift/Lower Speed (Empty)
0.360 m/s / 0.406 m/s
Available Fork Lengths
762 - 2134 mm
